Product Overview

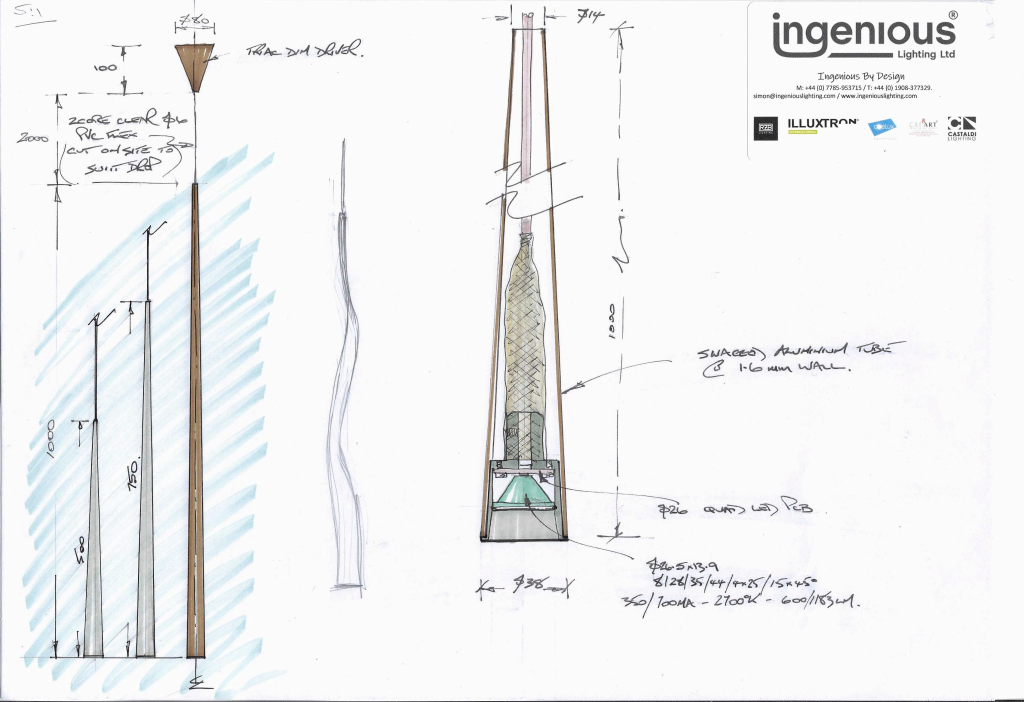

The Fox pendants are beautifully crafted from 2mm thick High purity Aluminium tube, machine swaged to create a sleek high output LED pendant. Integral TRIAC dimming driver within the ⌀100 x 125mm tall aluminium ceiling housing. Constant current CREE XHP35-HD LED 927 / 930 / 940K 4/6/8 or 13W versions interchangeable Lenses: 19 / 30 / 44 / 62° symmetrical distribution CRI90 / HPF / DEKRA approved Life - >50,000 hours (5 year manufacturers warranty) Beautiful Selection of Vibrant anodised finishes (can mix & Match Ceiling housing and Pendant Body, Baffle finish - Black as standard (Special finishes on request) Special BS/RAL finishes on request
Technical Specifications
Electrical Performance
Wattage
8W•13W
Lumen Output
775lms•1050lms
Input Voltage/Current
240VAC/50Hz
Typical Efficacy (lm/W)
96>80Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 2700300035004000CRI90 |
| Beam Angles (º) | 19304462º |
| Finishes (Baffle) | Matt White -W Matt black -MB Anodised silver -ANS Anodised Black -ANB Anodised Copper -ANC Anodised Rich Gold -ANG Anodised Champagne Gold -ANCG Anodised red -ANR |
| Finishes (Body/Bezel) | Anodised silver -ANS Anodised Black -ANB Anodised Copper -ANC Anodised Rich Gold -ANG Anodised Champagne Gold -ANCG Anodised red -ANR Any BS/RAL finish to order |
| Accessories | N/A |
| IP Rating | 20 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Energy Efficiency Class | F>E |
| Control / Driver Options | Integrated TRIAC driver - TRintegrated DALI driver -DA |
| Typ Product Code | Fox-500/8/2700/19/ANB/ANCG/DA |
